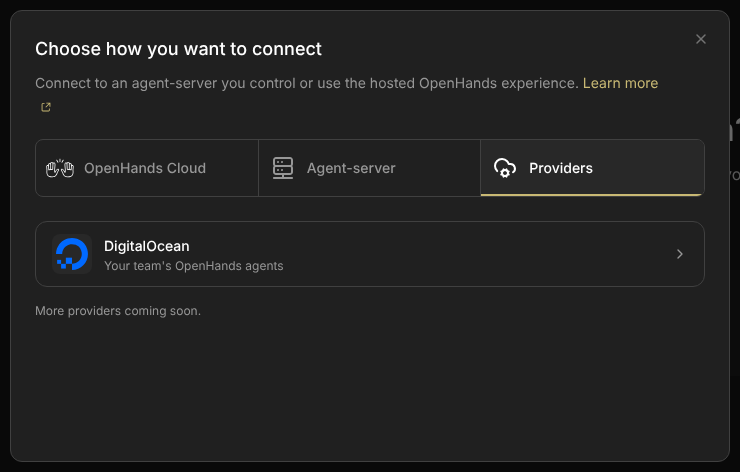

Choose DigitalOcean, sign in, and open your session. On an iPad, sign in to approve that browser too. A normal restart keeps your place. Agents use the existing Canvas session key for now; people should not copy that key to finish a DO login.
Assumption: the Mac’s Canvas is not on the internet, and this plan doesn’t put it there. Other devices reach it over the same Wi-Fi or a private network such as a tailnet. Canvas only makes outgoing connections to DigitalOcean, so DigitalOcean never needs to reach the Mac.
The user experience comes first. DigitalOcean should be the easiest backend to connect and restore. Keep ordinary backends’ own keys unchanged. For DO, make login the normal action. Keep saved sessions, accounts and conversations intact. Show one useful next step when a connection fails.
This page merges smolpaws’s Keep DigitalOcean connected and Claude Code’s People sign in, agents use keys, both written on 19 October, with Engel’s decisions from the next day. Their earlier versions are linked under Evidence.
What a person and their agents should be able to do. People sign in; they don’t type keys. Agents use keys.
If your organization blocks third-party apps, paste a personal access token once instead of signing in.
Later option: Sign in with DigitalOcean on the iPad instead (compare). That one opens only the DigitalOcean backends.
Needed first: Canvas has to accept devices on your network. Today only the npx launcher can (--host). The desktop app needs a setting for it (a follow-up).
$OPENHANDS_AUTOMATION_API_KEY. With it and the Canvas address, it can list your DigitalOcean agents, open a session and start a conversation there. Nothing tells the agent, though, unless you do.For now this works with the npx launcher and Docker, started with MARS_WEB=1. The desktop app gets it when it joins the host bridge. The details are in section 07.
The computer that runs Canvas: your Mac with the desktop app, or a Mac mini, Linux box or container running npx @openhands/agent-canvas.
Code on the Canvas host. It calls DigitalOcean and keeps the connection to your sessions open.
The existing admin key accepted by the Canvas host’s protected routes, including its bridge. It is not a DO token or a guest Agent Server key. The local launcher can supply it automatically; other backends keep their own keys.
A running sandbox on DigitalOcean with its own Agent Server. MARS is the integration’s internal name.
A saved destination in Canvas. A DigitalOcean backend points at one DO session through the bridge.
You approve access on DigitalOcean’s own page, and DigitalOcean gives the host a token: a secret that grants limited permission.
A one-time proof for OAuth. The process that starts a sign-in must prove it is the one finishing it. No shared app secret is needed.
The operating system’s protected secret store: Keychain on macOS, Credential Manager on Windows, Secret Service on Linux desktops.
Current flow (21 October 2026, in the PR stack): Today that access comes from the host’s session key, supplied automatically, entered manually, or obtained through pairing. Afterward, the browser can use the bridge cookie. A key for a different backend does not grant access to this host. In the proposed people flow, a successful DO login by the approved owner also earns a browser cookie. Agents keep presenting the existing session key. The cookie is for /mars; it does not change other backends’ keys.
DigitalOcean checks an OAuth token or a personal token. The bridge holds it in safe storage. An OAuth grant is not returned to the page or an agent, and is never forwarded to the Agent Server inside DO. Manual token entry remains an advanced fallback.
OAuth replaces typing a DigitalOcean token. It doesn’t replace protecting the host. Only an approved caller may use the saved DO connection. A different person’s successful DO login must not unlock this host. Keep the session key private and use HTTPS or a protected network.
Canvas has two DigitalOcean bridges today. In the desktop app, the Electron main process holds the credentials, encrypted with Electron’s safeStorage. In the browser build, the Canvas server holds them in memory. The two share the service code in scripts/mars-tunnel-bridge.mjs, but each has its own storage, its own sign-in and its own reach.
| Desktop app (Electron) | Browser (npx @openhands/agent-canvas, Docker) | |
|---|---|---|
| Who holds the token | Electron main process, reached over IPC | The Canvas server, reached at /mars/rpc/* |
| How you sign in | OAuth implicit grant, but only when DO_OAUTH_CLIENT_ID is set: the shipped oauthClientId is empty. A token always works. | Token only (canUseOAuth: false) |
| Where the sign-in lives | A safeStorage-encrypted file in the app’s data folder, or memory when no keychain is available | Process memory |
| After a restart | Still signed in (from source; not run here) | Signed out (checked live, below) |
| Bridge cookie | Not used | Random per process, so a browser’s cookie stops working after a restart |
| Agents | No path: the bridge is only reachable over IPC | With the session key: listing works, but the stock clients’ event socket doesn’t (section 07) |

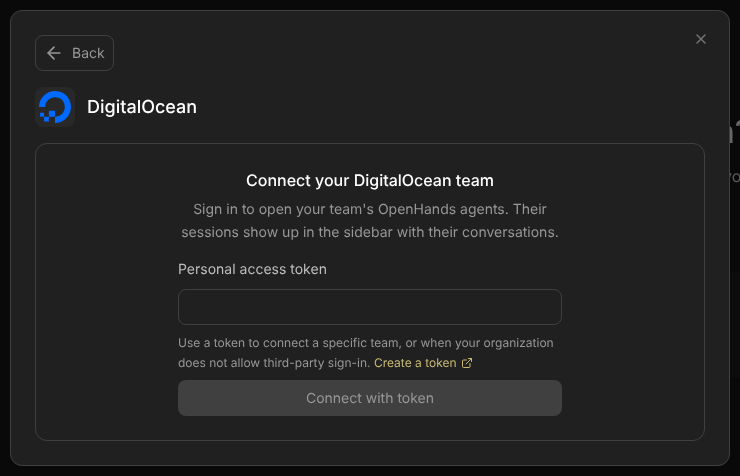

What a person runs into, in the order they meet it (browser build, driven with control-openhands):
teamName is null for every connection, because nothing asks DigitalOcean which team the token belongs to.isPersistent: false, but this panel doesn’t say so. Only the account bar in Manage Backends’ Managed Agents view shows the warning.control-openhands restart, getAuthState() returns {"connections":[],"active":null} and the sign-in form is back. A DigitalOcean backend you had selected stays in the browser’s backend list with no credential behind it./mars cookie secret is random per process, so a browser’s existing cookie stops working after a restart. A maintainer’s comment on #18604 raised this.Not checked here: connecting a session, because in this sandbox the tunnel’s WebSocket bypasses the proxy that supplies DigitalOcean credentials. Also not checked: Electron’s OAuth window, since there is no display. Those rows come from the source.
DigitalOcean’s sign-in has improved. Today’s desktop code uses an older method, the implicit grant, because it was written when DigitalOcean documented no PKCE. DigitalOcean’s live metadata now lists the code flow with PKCE and refresh tokens, and no longer lists the older method. Current security guidance discourages the older method anyway.
DigitalOcean’s docs add three useful facts. Access lasts an hour and renews by itself. A return address on this machine can use any port. And the reply names the team. That removes the monthly re-login, the fixed port 53682, and the missing team name. A real sign-in on 20 October confirmed all three (what it showed).
The PR stops a ready DigitalOcean backend from looking like an ordinary local server with a missing key. It doesn’t replace the restart flow. On an auth error, root can still show the generic key form. That form tests the Canvas origin, then merges its fields into the selected backend, so the saved DO session ID can survive while its address changes. This is a code-path risk read from source; nobody ran the destructive sequence.
The Canvas host is the machine running Canvas: the desktop app on your Mac, or npx @openhands/agent-canvas on a Mac mini, a Linux box or a container. It is the only Canvas component that keeps the DigitalOcean credential. The optional direct-DO path for outside agents uses their own credentials.
The sign-in belongs to the host, not to a browser tab. In the current PR stack, the host keeps the DigitalOcean grant in safe storage. Each browser has its own backend list and stores its own bridge cookie; the cookie itself is not in Keychain. Once admitted to this Canvas host, a new browser can discover and use the saved DO connection without another DO login. That does not mean an unauthenticated browser can use it. The target adds DO login for an approved new browser without prior Canvas-key access; that owner-checking flow is still separate work. Each view names the host that holds the grant.
Use the authorization-code flow with PKCE. A code is a short-lived reply from DigitalOcean. The host exchanges it for an access token. A refresh token lets the host renew access without asking you to sign in again.
state) and a PKCE proof, keeps both in memory for this attempt only, ties the attempt to the browser that started it, and expires it after 10 minutes.Checked with a real sign-in (20 October, PR 2). Canvas showed the team and email, saved the sign-in, and still had it after a restart. What it showed:
invalid_request, not the usual invalid_grant. Canvas reads both as “signed out”, so a network error never looks like one.On an iPad, choose DigitalOcean and click sign-in. Approve on DO. Canvas checks that this is its approved owner, then gives this browser a /mars cookie. If DO already knows you, this may be only a few clicks. Otherwise DO asks you to log in.
DO login is not an open invitation to this host. Someone else can log in to their own DO account. They must not gain access to this host’s saved connection. Record the allowed owner during trusted first setup. Check a stable DO owner identity and the approved team on return; team membership alone is not enough. If DO’s reply cannot prove the owner identity, require approval from an already trusted browser or on the host. Test this before claiming new-browser login is complete.
The public sign-in-start route may create only a short-lived login attempt. It cannot list sessions, return saved account details, or change a working connection. Apply a request limit. Keep attempt status private to the starter: an attempt ID alone is not access to the result. Management routes remain protected. A wrong account, cancelled login or failed save leaves the existing DO connection untouched.
First setup is different from another browser. A local setup action or one-time host approval claims the owner. Do not let the first stranger who reaches an unclaimed network host become its owner. Ordinary local or remote Agent Server backends still use their own keys; DO login does not grant access to those backends.
An option to compare, added 20 October. Not decided.
The DigitalOcean sign-in already lives on the host. So a new iPad doesn’t really need to sign in to DigitalOcean. It only needs to prove it belongs to you. A device that is already in can vouch for it.
Add another device
Copy link insteadWorks once. Expires in 5 minutes.
The secret part of the link sits after a #, so it never appears in server or proxy logs. The page reads it and sends it once.
Do you have to be near the Mac? No, near a device that’s already in. The QR code needs a screen you can see, but the link can travel any way you like: AirDrop, a message to yourself, or a terminal over SSH on a host without a screen. The very first device is the Mac itself: it’s in automatically, with no DigitalOcean sign-in. Connecting Canvas to DigitalOcean is a separate, one-time step, easiest done on the Mac.
Because the Mac isn’t on the internet, the iPad reaches it over the same Wi-Fi or a tailnet, however it gets in. The one case pairing can’t help: you’re away from your other devices, and the iPad is the only one you have.
| DigitalOcean login | Pairing | |
|---|---|---|
| On the new device | Sign in with DigitalOcean | Scan a code or open a link |
| Needs a device that’s already in | No | Yes, once |
| Login page anyone can reach | Yes, guarded by the owner check | No. Only devices already in can create a link |
| Owner check and first-setup claim | Needed | Not needed |
| HTTPS return from DigitalOcean | Needed for an iPad | Not needed; the iPad never visits DigitalOcean |
| What the new device gets | The DigitalOcean part only, unless the design adds more | The same access as typing the Canvas key, without typing it |
| Revoke one device | Not with the derived cookie | Not with the derived cookie; yes, if pairing creates a new admin key per device (the recorded follow-up) |
Both can exist. Pairing is the smaller change and needs nothing new from DigitalOcean, so it could come first. DigitalOcean login stays the “from anywhere, with no other device” option, once its owner check and HTTPS return are tested.
The same screens appear in the desktop app and the browser. The sign-in button comes first. The token field moves behind a disclosure, for organizations that don’t allow third-party apps. Every signed-in view says where the sign-in is kept.
Sign in to open your team’s OpenHands agents.
Sign in with DigitalOceanOpens DigitalOcean in your browser. Canvas keeps the sign-in in the macOS Keychain on studio.local.
Choose your team and approve OpenHands Agent Canvas in the tab that just opened.
Waiting for DigitalOcean…
CancelAfter you approve, DigitalOcean sends the tab to 127.0.0.1, so it won’t load here. Copy that tab’s address and paste it below.
You’ll come back to the same agents and sessions.
Sign out of My Team on this computer?
After you approve, DigitalOcean redirects the browser to a callback address. Which address works depends on where the browser is. On an iPad, 127.0.0.1 means the iPad, not the Canvas host. Pick a case:
One click. The callback lands on Canvas itself. This ships first.
This covers the desktop app, a browser on the Canvas machine, and SSH port forwarding: there, the page address is loopback on your laptop and the forward carries the callback home.
Plain HTTP gets a warning, not a block. Paste-back only changes where DigitalOcean’s reply goes. It doesn’t make the connection safe. But Canvas can’t tell a safe network from an open one. And on an open network the session key is already exposed, which matters more.
Today, such a person would paste a long-lived token over that same link. A pasted code works once, and is useless without the proof that stays on the host. So Canvas warns on every plain-HTTP page from another address, and suggests HTTPS, a tailnet or an SSH tunnel.
DigitalOcean says public clients are “typically” created through its registration endpoint (/v1/oauth/register), which never returns a client secret. So OpenHands registers one public client that way, with loopback callbacks, and ships its client ID in config/defaults.json; DO_OAUTH_CLIENT_ID overrides it. The separate registration-management secret stays with the maintainers. Hosts don’t register a new client on every restart.
Later, a self-hosted Canvas behind HTTPS may register its own client with its configured HTTPS callback, if DigitalOcean accepts that. Never put a client secret in shipped JavaScript or a desktop binary; a centrally operated web service could hold one, but Canvas isn’t that.
SameSite=Lax so it survives the return from DigitalOcean; the normal bridge cookie stays Strict. The desktop app’s return arrives in the system browser, which has no such cookie. There, state plus PKCE carry it, the native-app pattern of RFC 8252.state, 10-minute expiry, redirect_uri pinned per attempt. Use the configured origin and path prefix; don’t trust an arbitrary Host header.| Where | Today | Proposed |
|---|---|---|
| Token hint | “Use a token to connect a specific team, or when your organization does not allow third-party sign-in.” | Behind “Use a personal access token instead”: “For organizations that don’t allow third-party apps. Canvas keeps it in the macOS Keychain on studio.local.” |

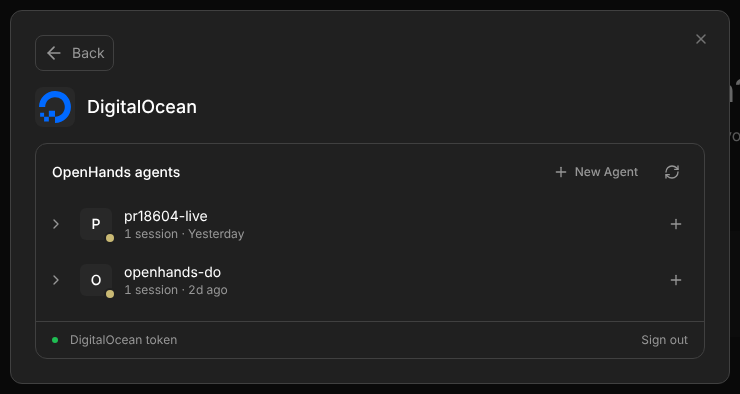

| Account line | “DigitalOcean token” | “My Team · you@example.com”. For a token: the team from GET /v2/account when the token may read it, else “Token · added 19 Oct”. |
| Storage line | A warning in Manage Backends only, and only when nothing is saved | In every signed-in view: “Saved in the macOS Keychain on studio.local”, “Saved encrypted on this server (no keychain here)”, or “Not saved: you’ll sign in again after Canvas restarts”. |
| Plain-HTTP warning | None | On a non-loopback page served over plain HTTP, for all of Canvas: “This connection isn’t encrypted. Your Canvas key and what you do here can be read on this network. Use HTTPS, a tailnet or an SSH tunnel.” |
| Keychain locked | Not distinguished from signed out | “Canvas can’t open the Keychain on studio.local. Unlock secure storage, then retry. Your saved connection is unchanged.” |
OAuth and personal tokens are two ways to get DigitalOcean permission. They use the same safe store and the same restore code. OAuth still needs saved secrets; it doesn’t remove the storage work.
| Option | What the person does | What the host saves |
|---|---|---|
| Preferred · OAuth + PKCE | Clicks sign-in and approves on DigitalOcean. | Access token, refresh token, expiry and connection identity (team). |
| Alternative · personal token | Creates a limited token and pastes it once, over a protected connection. | The token and connection identity. When it expires or is revoked, Canvas asks for a new one; there is no silent renewal. |
Platform code stays behind SecretStore: read, write and remove, plus where it keeps things (kind, label). The rest of the bridge never knows which operating system holds the secret. Electron’s safeStorage belongs to Electron, and with one bridge the secrets live in Node everywhere, so Electron’s file is migrated once and then retired.
Built (PR 1): no native module. The keychain store calls the tools the OS already ships: /usr/bin/security on a Mac, secret-tool on a Linux desktop. The secret goes to them on stdin, never as an argument, and every Mac write is read back, so a locked keychain shows as “not saved” instead of passing silently. Nothing is written to choose a store. This avoids a native build per platform; @napi-rs/keyring stays the fallback if the tools prove too slow or too limited. Windows has no keychain store yet and uses the encrypted file.
| Where the Canvas host runs | Store | Important limit |
|---|---|---|
| macOS | Login Keychain, generic password | Run as the right OS user. A new binary reading an item may ask once (“Always Allow”), for example after a Node upgrade for npx users. A locked keychain (Canvas started over SSH, or by launchd with nobody logged in) is a visible unavailable state, never a reason to save plaintext. |
| Windows | Credential Manager, generic credential (later; the encrypted file until then) | Check the service account and packaging; don’t assume the desktop user’s store is there. Measure the encoded token-pair record against the Windows store’s size limit. Do not assume every future OAuth reply fits. |
| Linux desktop | Secret Service (GNOME Keyring, KWallet) over D-Bus | Only a store that survives reboot counts. The kernel keyring that some keyring builds fall back to doesn’t, so the probe rejects it rather than calling it saved. |
| Linux server, container | No keychain → an encrypted file on a persistent volume, keyed by OH_SECRET_KEY | This is the Canvas host’s encryption configuration, not the OH_SECRET_KEY inside a DO guest. Supply the key separately from the encrypted file and keep it stable. Without OH_SECRET_KEY: an explicit “this run only” mode with the warning, never a silent fallback. MARS_TOKEN still seeds a connection. |
Give each connection a stable ID and a known team; connections are keyed by team. Signing in again for a team that already has one replaces its secret and keeps its ID, so a selected backend and its tunnels carry on. Keep labels separate from secrets.
Record a format version. Write a new file completely, then replace the old one in one step, with access limited to the host’s OS user. Don’t overwrite a working credential until the new one passes the access check. Clear cached secrets when a connection is removed. Make migration reversible.
# OS keychain · service "openhands-agent-canvas"
digitalocean/<connection id> {"v":1,"kind":"oauth","refresh_token":"…","access_token":"…","access_expires_at":"…"}
digitalocean/<connection id> {"v":1,"kind":"pat","token":"…"}
# ~/.openhands/agent-canvas/digitalocean/connections.json · 0600 · no secrets
{"version":2,"active":"c_…","store":"keychain","client":{"id":"…","source":"shipped"},
"connections":[{"id":"c_…","kind":"oauth","team_uuid":"…","team_name":"My Team",
"email":"you@example.com","status":"ok","created_at":"…"}]}A refresh token can be used once, and a refresh invalidates the previous access token. Two refreshes in flight, from two tabs or two Canvas processes, would leave the host holding a dead token. So each process refreshes once per connection at a time, a lock file covers several processes sharing one keychain, and the new pair is saved before it is used. If saving fails after DigitalOcean consumed the old refresh token, report a recovery error; never claim renewal succeeded.
async function accessToken(id) {
const s = await store.read(id);
if (s.kind === "pat") return s.token;
if (msLeft(s) > 60_000) return s.access_token;
return singleFlight(id, () => withFileLock(`digitalocean-${id}`, async () => {
const fresh = await store.read(id); // another process may have refreshed
if (msLeft(fresh) > 60_000) return fresh.access_token;
const r = await oauth.refresh(fresh.refresh_token); // the old refresh token dies here
if (r.error === "invalid_grant") {
connections.setStatus(id, "needs-sign-in"); // screen E; agents get a 401 that says so
throw new SignInRequired(id);
}
await store.write(id, { ...fresh, ...r }); // persist before use; if this throws, the old
return r.access_token; // token is already spent: needs-sign-in, never success
}));
}The cookie value becomes HMAC-SHA256(session key, "mars-web-cookie/v1"), set HttpOnly, SameSite=Strict and Path=/mars, and Secure on HTTPS. Give it a bounded browser lifetime. It stays valid across normal restarts only if the host keeps the same session key. Key rotation invalidates it. The browser saves the cookie; the host derives its value and stores no extra cookie secret.
For DO, an approved OAuth return can issue a new cookie without exposing or asking for the session key. If the browser still has a valid host credential, it may renew silently. After key rotation, the target is DO sign-in again for people and the replacement key for agents. Keep the saved DO grant and selected conversation intact.
The accepted cost: no signing out one browser, and rotating the key signs out all of them. Saved per-browser sessions (a random cookie per browser, stored only as a hash, with an expiry) are the upgrade if Canvas ever needs per-browser sign-out or a host shared by several people.
Read the saved backend first. If it is a DigitalOcean backend, show DigitalOcean recovery, never the ordinary local-backend key form. A saved credential removes the most common failure, but not every one.
The error says only “not authorised”. The form can then replace the selected DigitalOcean backend’s address with the Canvas origin.
Sign in to approve this browser, sign in to DigitalOcean again, unlock safe storage, or reconnect the tunnel. None of these may edit the saved DO session identity.
Open the same conversation. Don’t ask for a token.
The backend ID, DO session ID and connection ID stay unchanged.
These are proposed states, not recordings of live recovery. The table gives the same rules without JavaScript.
| Missing step | What the person sees | What must stay intact |
|---|---|---|
| Host access (browser only) | “Sign in with DigitalOcean to use this Canvas host”, or pair from a trusted device (section 04). Check the approved owner and issue a new bridge cookie. Do not edit a backend or ask for the guest’s key. | The DigitalOcean backend, connection, session and conversation selection. |
| DigitalOcean permission | “Sign in to DigitalOcean to reconnect” (screen E). | The saved destination. Check the returned team before reconnecting. |
| Safe storage locked | “Unlock secure storage”, with retry. | All saved records. A locked store is not an empty store. |
| Tunnel or network | “Can’t reach this DO session. Retry, or manage connections.” | Credentials and destination. No generic key prompt. |
| Session deleted | “This DO session no longer exists.” Offer a different one. | Don’t create a replacement silently or overwrite the old record. |
Each DigitalOcean backend remembers which team it belongs to (marsConnectionId), so a restore reaches the right team even after you switch. Agents keep it simple and use the active team (section 07). For an old backend without that record, Canvas checks which team owns the session, and asks if it can’t tell.
Reconnecting can wake a paid DO session. Restore only the selected session, never every saved backend. Keep the person’s pause choices, and never create a session because a restore failed.
Today’s restore considers only the active backend and waits for DigitalOcean sign-in: useRestoreMarsTunnels.
Agents in conversations on Canvas’s Local backend (the Agent Server that Canvas starts on the Mac or in its Docker container) already receive the session key, as OPENHANDS_AUTOMATION_API_KEY. The launcher sets it for Automations; it is the same key. A trusted agent that can reach the host can be given the same key: LOCAL_BACKEND_API_KEY, or ~/.openhands/agent-canvas/api-key.txt on the Canvas host. With it, an agent can already reach the bridge, in the browser build (the npx launcher or Docker, started with MARS_WEB=1). The desktop app keeps its bridge inside the app, so agents there have the key but no /mars calls until it joins the host bridge. Nothing tells an agent the bridge exists, either: its prompt lists Automations, not DigitalOcean, so point it at the docs (follow-up). The key belongs to Canvas, not to the Agent Server inside DO. There is no new kind of key or permission level in this release. The remaining work completes and documents this path.
Decided: the session key is admin-type for now, and an agent’s connect uses whichever DigitalOcean team is active in the UI. Existing tunnels keep their owner.
| An agent sends, with the session key | Result |
|---|---|
POST /mars/rpc/listAgentConfigs | The team’s OpenHands agents: pr18604-live, openhands-do. Without the key: 401. |
POST /mars/rpc/listConfigSessions | That agent’s sessions: one, paused. |
REST through /mars/sessions/<id>/api/… | Passes authentication (409 here, because the session isn’t connected). |
| Event-socket upgrade, key in a header | Passes authentication (409, same reason). |
| Event-socket upgrade, no header | 401. This is how the Python SDK and the TypeScript client connect: they send the key as a first {"type":"auth"} message. |
A person had signed in through the UI first. Connecting a session wasn’t possible in this sandbox (section 02). As for people, a restart takes DigitalOcean away from agents until the sign-in is saved.
prepareMarsSandbox when a person attaches. An agent calling the bridge directly skips that preparation. Keep any still-needed preparation in the host’s connect step so both callers get it. Retain the encryption-key workaround until its template fix is verified (#18338).POST /mars/rpc/<method> with {"args":[…]}.# KEY: OPENHANDS_AUTOMATION_API_KEY in a local conversation, or ~/.openhands/agent-canvas/api-key.txt on the host
B="${CANVAS_URL:?Set CANVAS_URL to the Canvas address reachable from this agent}"
# 127.0.0.1 only if Canvas runs in this agent’s network environment.
rpc() { curl -s -X POST "$B/mars/rpc/$1" -H "X-Session-API-Key: $KEY" -H 'Content-Type: application/json' -d "{\"args\":$2}"; }
rpc listAgentConfigs '[]' # configs; use those with "agent":"openhands"
rpc listConfigSessions "[\"$AGENT\"]" # its sessions, or start one (it bills while it runs):
rpc createSession "[\"$AGENT\"]" # waits until READY, up to 5 minutes
rpc openTunnel "[{\"sessionId\":\"$SESSION\"}]" # wakes a paused one → {"host":"$B/mars/sessions/$SESSION",…}
curl -s -X POST "$B/mars/sessions/$SESSION/api/conversations" \
-H "X-Session-API-Key: $KEY" -H 'Content-Type: application/json' -d @start.json
rpc pauseSession "[\"$SESSION\"]" # when doneThe conversation needs an LLM, either set in that session’s Agent Server settings or sent in the start request. With the OpenHands SDK, point RemoteWorkspace(host=…, api_key=KEY) at the host that openTunnel returns. The source supports REST authentication today; the reported live check stopped at a disconnected-session 409. Real conversation REST and event streaming still need a connected-session test. The event socket also needs gap 1 closed (checked against the SDK and Agent Server 1.56.0).
What this key can do, said plainly. Whoever holds the session key can also start sessions, which bill, and stop them and delete agents, for the active team. Only give it to agents you would let do that. This plan does not add roles, permission levels or different key types. Later, people may create and revoke additional keys with the same admin authority.
An agent that can’t reach Canvas, such as a cloud worker, CI, or an agent inside a DigitalOcean session, uses its own DigitalOcean token with DigitalOcean directly (doctl agents port-forward). Canvas isn’t involved.
127.0.0.1. With the Mac off the internet, agents inside DigitalOcean sessions or in the cloud can’t reach Canvas at all; they use their own DigitalOcean token. This follow-up is for agents on the Mac, in its containers, or on the same Wi-Fi or tailnet. Choose a reachable Canvas address and retain the session-proxy path. Test the same issue for an iPad’s OAuth return. Keep the connection protected; do not solve it by exposing an unauthenticated guest. Tracking: smolpaws-hf5n.smolpaws-wmaj.<RUNTIME_SERVICES> block, so agents in Canvas conversations find it without being told. It adds text to every agent’s system prompt, so it needs its own decision. Not in the work tracker yet.npx launcher can (--host). The desktop app listens only on the Mac itself, unless OH_BIND_HOST is set in its environment. Add a setting: off by default, with the plain-HTTP warning when it’s on. The Mac still stays off the internet. Story 2 needs this to work with the desktop app. Not in the work tracker yet.The first two are recorded in the local work tracker for follow-through. They are not claims that upstream issues or implementation PRs exist.
Sections 08 to 13 are the details. You can stop reading here.
The bridge moves entirely into the Canvas server process that fronts the page: scripts/ingress.mjs in the full stack, or scripts/static-server.mjs on its own. Admitted browsers use the bridge cookie; agents use the existing session key. Both reach /mars/rpc and the /mars/sessions proxy. Discovery and the limited sign-in start / callback routes do not need the key. Those login routes use one-time checks and grant no management access until the owner is approved. Root picks the recovery screen from the restore result; it doesn’t guess which credential failed.
| Code | Change | Must not |
|---|---|---|
scripts/mars-web-bridge.mjsexisting | The host bridge for both builds: /mars/rpc, /mars/oauth/callback and the /mars/sessions proxy, whose event socket also accepts first-message auth. Cookie derived from the session key; approved OAuth sign-in can issue it. Keep a saved owner record and a bounded public login attempt. | Expose DigitalOcean secrets in responses, or pass host credentials to the guest. |
scripts/mars-tunnel-bridge.mjsexisting | Service only; registerIpc goes away. A connection-bound token provider for API calls and tunnel redials. openTunnel takes an optional connection: the UI passes the backend’s, agents get the active one. Its connect step runs the sandbox preparation. | Move an existing tunnel to another team. |
scripts/mars-credentials.mjsexisting | ConnectionStore: versioned metadata (team, kind, status) with atomic saves; secrets through SecretStore. | Fall back to plaintext, or erase a record because its store is locked. |
scripts/mars-secret-store.mjsnew | SecretStore: keychain, encrypted-file and memory (“this run only”) backends. Probed at start; OH_CANVAS_SECRET_STORE overrides it. | Accept a store that doesn’t survive reboot as “saved”. |
scripts/mars-oauth.mjsexisting | Code + PKCE on the Canvas origin, with the shipped client ID; refresh with single-flight and a lock; revoke on sign-out. | Ship a secret, or claim old implicit tokens can be refreshed. |
src/api/mars/mars-sandbox-setup.tsexisting | Moves to the host, into the bridge’s connect step, until #18338. | Run only for connections the UI makes. |
electron/main.mjs, preload-main.cjsexisting | No bridge; the ingress hosts it. A one-time migration moves the safeStorage file into SecretStore. | Keep a second sign-in path. |
src/api/mars/mars-web-bridge.tsexisting | The only bridge client. OAuth through beginSignIn and awaitSignIn. | Hold a token, or put one in localStorage. |
useRestoreMarsTunnels / rootexisting | Wait for each restore step; report host access, DigitalOcean sign-in, locked store or tunnel error separately. | Route every 401 to the local-backend key form. |
ApiKeyEntryScreenexisting · narrower | Ordinary local-backend setup only. DO gets its own browser sign-in screen. A hard guard refuses to edit a DigitalOcean backend. | Merge a Canvas-origin host or key into the selected DigitalOcean record. |
src/components/features/backends/managed-agents/*existing | Screens A–F in section 04. | — |
beginSignIn({ origin }) on click. hostCreates only a bounded login attempt; checks that the callback can land (section 04), creates state and a PKCE verifier (memory, 10 minutes, single use), sets the attempt cookie, and returns { attemptId, authorizeUrl }.about:blank synchronously in the click handler, so popup blockers allow it, then points that window at authorizeUrl. Electron already sends such windows to the system browser; the OpenHands Cloud device login uses the same route.GET /mars/oauth/callback?code&state on the Canvas origin. (Later, paste-back sends the same address through completeSignIn.)POST /v1/oauth/token with the code and verifier. It receives a one-hour access token, a refresh token and info.team_uuid and info.team_name, checks the approved owner and team, checks that the token can list sessions, writes the secret before the metadata, then issues the browser cookie. An unknown identity gets no host access.awaitSignIn(attemptId), a long poll protected by the starter’s temporary browser proof, resolves after owner approval. Issue the bridge cookie to this original Canvas browser, not only to the callback tab. This also covers Electron when DO returns in the separate system browser. The panel lists the team’s agents. The callback tab says “Signed in to DigitalOcean as My Team. You can close this tab.”agent ─ X-Session-API-Key ─▶ POST /mars/rpc/openTunnel {"args":[{"sessionId":"S"}]}
authorize(session key) // the same check the page gets
tunnels.attach(S, { owner: active connection })
prepareSandbox(S) // moved from the browser; idempotent; until #18338
◀─ { status: "connected", host: "<origin>/mars/sessions/S" }
agent ─ REST, X-Session-API-Key ─▶ /mars/sessions/S/api/… → proxy → tunnel → guest :8000
agent ─ WebSocket /mars/sessions/S/sockets/events/… ─▶
cookie or header? check it, then pass the upgrade through, as today
neither accept, wait ≤ 10 s for {"type":"auth","session_api_key":K}, check K in constant time
dial the guest through the tunnel, drop the auth frame, pipe frames both ways
wrong or missing key: close 4001, as the Agent Server doesThe session key never reaches the guest. The proxy already strips it, along with the cookie and the other Canvas-only headers.
// Proposed. Illustrative, not an implemented API.
SecretStore
status() → ready | locked | unavailable | session-only
read(connectionId) · write(connectionId, completeSecretRecord) · remove(connectionId)
ApprovedOwner // set only during trusted first setup
stableDoIdentity, approvedTeam, claimMethod
DoConnection // kept by the host, keyed by team
id, teamUuid, teamName, email, kind: oauth | pat, status: ok | needs-sign-in | unavailable
ManagedDoBackend // safe selection data in the browser
id, kind: local, provider: digitalocean
marsSessionId, marsConfigId, marsConnectionId
host // derived proxy address; only managed reconnect code updates it
RestoreResult
ready | host-access-needed | do-sign-in-needed | store-locked | store-unavailable | unreachable | session-missing
interface MarsAuthState {
connections: DoConnection[]; active: DoConnection | null;
storage: { kind: "keychain" | "encrypted-file" | "memory"; label: string; host: string }; // was isPersistent
oauth: { available: boolean; reason: string | null }; // was canUseOAuth
}
// replaces signInWithOAuth()
beginSignIn({ origin }) → { attemptId, authorizeUrl } // public, bounded attempt; no access yet
awaitSignIn(attemptId) → { state: "pending" | "done" | "failed", error?, auth? }
// requires the starter’s temporary proof; issues cookie only after owner approval
cancelSignIn(attemptId)
completeSignIn({ attemptId, callbackUrl }) // later: paste-backKeep kind: local for Agent Server API compatibility, and add an explicit provider rather than infer DigitalOcean from a hostname. Old records with marsSessionId stay recognised during migration.
Electron stops creating its own bridge in the main process, and the preload drops window.marsBridge. Electron also stops passing marsWebBridge: false to the stack. The page then finds the bridge at /mars/health, exactly as a browser does, and its window already receives the session key.
Before the stack starts, a one-time migration reads mars-credentials.json (v1) from the app’s data folder. It decrypts each token with safeStorage, writes SecretStore entries and v2 metadata without changing connection IDs, and renames the old file to .migrated. Implicit-grant tokens have no refresh token, so they move as they are and ask for sign-in once when they expire.
The trade: DigitalOcean in the desktop app now needs the ingress process, which the stack starts after waiting for the local Agent Server. The desktop app already opens its window from that ingress, and already shows a startup failure when the Agent Server doesn’t come up. Test packaged startup and saved-connection migration before claiming no working setup loses DigitalOcean. Letting DigitalOcean work while the local Agent Server is down would be a separate improvement.
| Risk | What stops it |
|---|---|
| A token reaches the page | The bridge only ever sends descriptions, never secrets. The callback page shows the team name, nothing more. |
| A fake callback | The request marker works once and expires in 10 minutes. The PKCE proof never leaves the host. Check the starter’s temporary proof and the saved approved owner before issuing a cookie. A successful login by a stranger grants no host access. |
| Someone reads tokens from disk | They live in the keychain. The fallback file is encrypted. The description file holds no secrets. |
| The session key on a network | Canvas listens only on 127.0.0.1 by default. Plain HTTP from another address shows a warning. The fix is HTTPS, a tailnet or an SSH tunnel. |
| An agent with the session key | It can do anything Canvas can, DigitalOcean included. The docs say so. Give it only to agents you trust that far. |
| A slow or fake socket login | A 10-second limit, a constant-time key check, and no connection to the session until the key checks out. |
| A surprise bill | Starting a session bills while it runs. Do not reconnect saved sessions in the background. Restore may wake only the selected one; show that consequence. Listing account metadata is not the same as probing a guest. |
| Another website, or a DNS trick | Unchanged from today: the bridge refuses other origins, and checks the Host header on loopback. |
Being built (20 October), as stacked draft PRs for #18704: 1. stay signed in, #18705; 2. sign in with DigitalOcean, #18706; 3. agents, #18707; 4. pairing a new device, #18711. The desktop app’s move onto the one bridge comes last, as its own PR: it needs a Mac to test. Until DigitalOcean support is ready, the web bridge stays off unless Canvas starts with MARS_WEB=1 (#18783).
Save today’s token sign-in in safe storage. Derive the cookie from the session key. Show the team and where the sign-in is kept. Add DigitalOcean-aware recovery, and stop the generic key form from editing a DigitalOcean backend. The desktop app doesn’t change yet.
You notice: a restart no longer signs you out, and your agents keep DigitalOcean too.
First, one small test with a real sign-in: register the client, check the permissions, refresh once, and measure what later steps need. Then ship OAuth for the desktop app and a verified browser return path. Test the owner check before admitting a browser without a host key. Same-machine support is a milestone, not proof that iPad sign-in is done. The desktop app moves onto the one bridge, keeping its saved sign-ins. The token stays available under “Use a personal access token instead”.
You notice: a “Sign in with DigitalOcean” button in the browser, and no monthly re-login.
Socket login on the proxy, sandbox preparation on the host, and the five calls documented and tested.
You notice: your agent, or one in a conversation on the Local backend, can open a DigitalOcean session and work in it, once pointed at the docs (desktop app: after it joins the host bridge). This is the target after connected-session and SDK tests, not a claim proved by the listing check.
Loopback / remote address handling, user-created admin keys, telling agents about the bridge, and the desktop app’s network setting. The first two have tracker records. No limited keys or key types are in this plan. A per-browser session store and DigitalOcean’s public session address can be considered separately.
The verify-openhands feature map gets its updates in a separate PR, after the product change, as AGENTS.md asks.
Keep Electron’s own bridge and add safe storage to the browser one. It’s a smaller change, but agents couldn’t use DigitalOcean through the desktop app, and the two sign-ins would keep drifting apart.
One revocable cookie per browser. More control, more state. The derived cookie is enough for a host with one owner. It’s kept as the upgrade.
Out of scope. Agents use the existing admin key. The follow-up creates more keys with that same authority, not different roles or types.
That puts a secret in the page. DigitalOcean’s API doesn’t allow browser calls anyway, and agents would be left out.
Not needed now that DigitalOcean supports PKCE. It would add a third party that sees everyone’s tokens: the wrong direction for an open, self-hosted tool.
DigitalOcean no longer advertises it, and its tokens can’t be renewed, so everyone would sign in again every month.
agent_harness_session:read and :operate? How long does a refresh token last? That decides how long a host can sit idle before someone signs in again.control-openhands on Linux. 19 October: sign-in, then a restart (ledger). 20 October: the agent path with curl (ledger).
